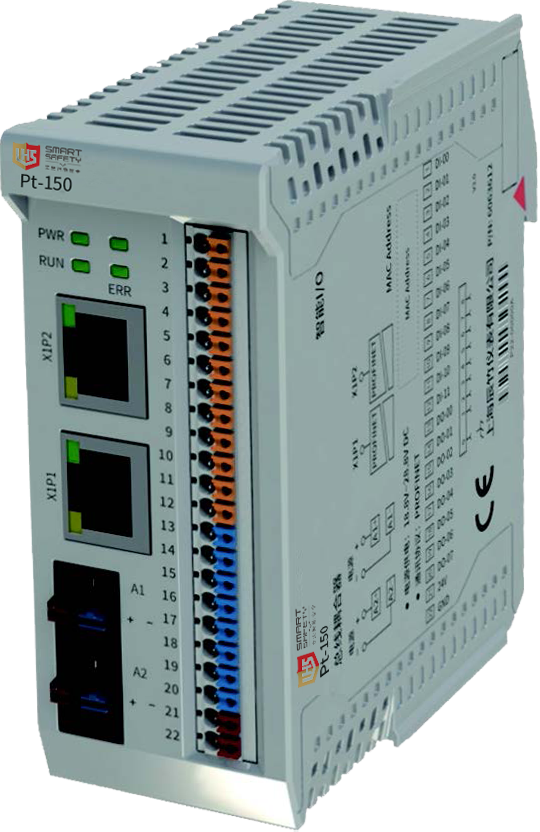

standard

IEC 61131-2 GB/T 15969.2-2008

Network port impulse voltage

1500V (1.2/50 US)

Insulation strength of mesh opening

1000V AC, 50Hz, 1min

EMS

refer to GTB 18268.1 (IEC 61326-1)

Operating ambient temperature

-Test range from 20℃ to+60℃:-30℃ to+70℃

storage temperature

-40℃~+85℃

Using ambient humidity

10~95%，Non-condensation

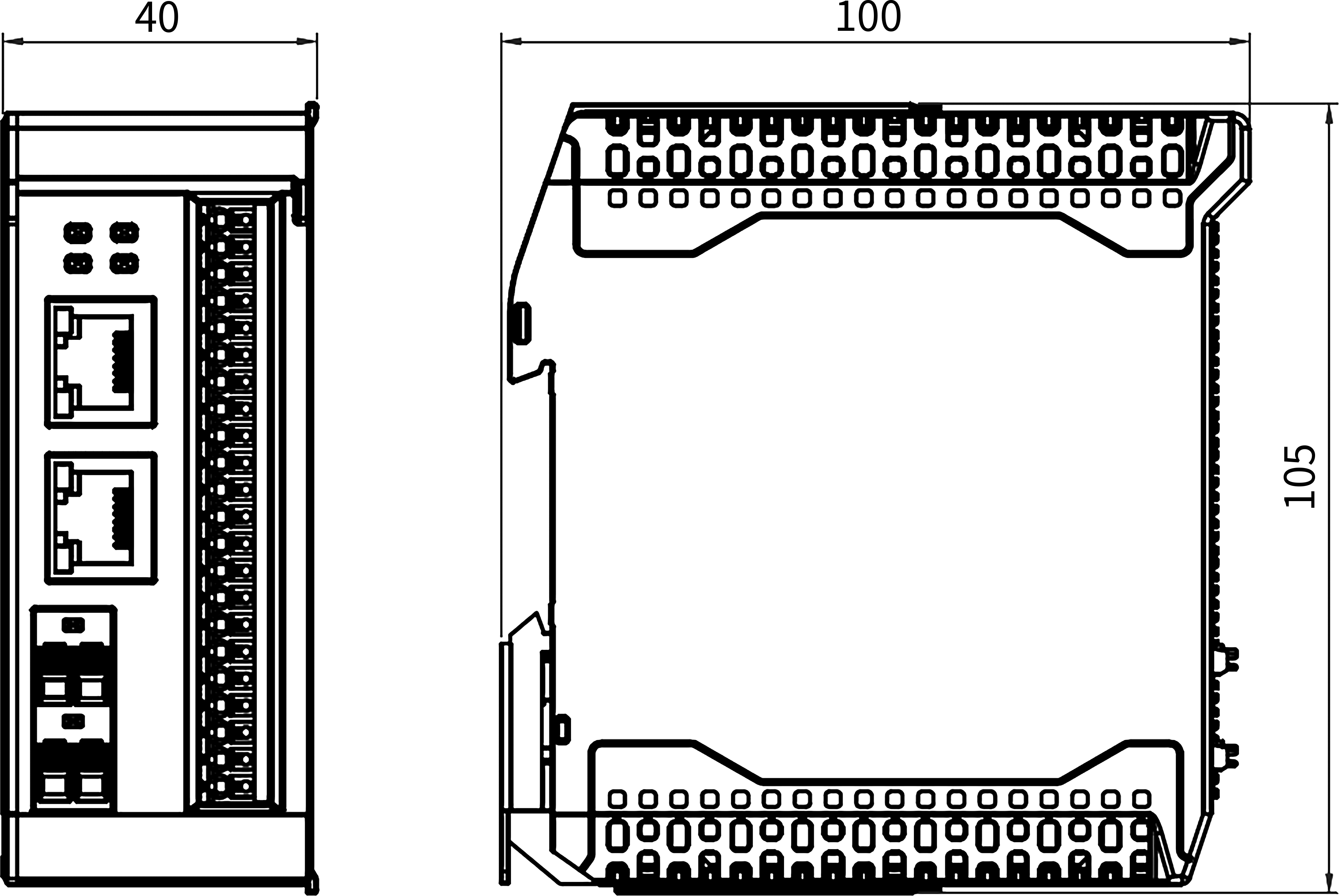

Overall dimension (W/H/D)

105mm×100mm×40mm

Number of ports

2

type

Ethernet (ProfiNet protocol)

Data transmission rate

10/100Mbit/s

DI technical parameters

Output type

Leakage pattern TYPE1、TYPE3

port number

12

input voltage

24VDC

Logic 1 signal (minimum)

2mA, 11VD

Logic 0 signal (max)

1.5mA, 5VDC

Cable length

500 meters (shielded); 300 meters (Unshielded)

Input filtering time

無、10ms、30ms、100ms (User-configurable）

Input delay

<1ms (Filter time setting None)

DO technical parameter

Output type

Transistor (PNP, 24V source output)

port number

8

Output current per channel

<500mA, With short circuit protection

Cable length

500 meters (shielded); 150m (unshielded）

Switching delay

The maximum length from disconnection to connection is 100us.

The longest disconnection of the connecting channel is 200us.
